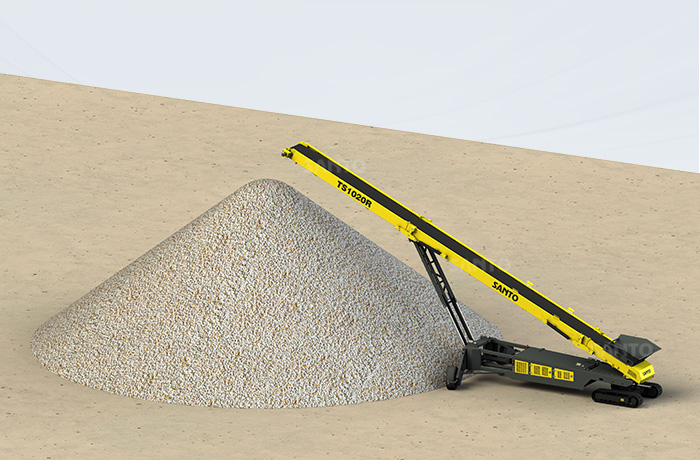

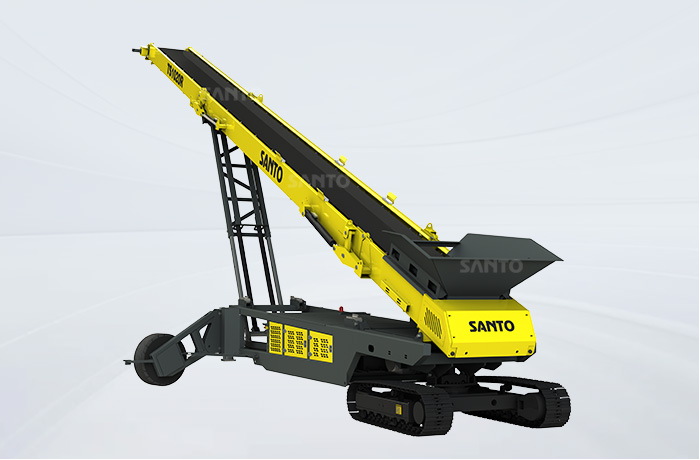

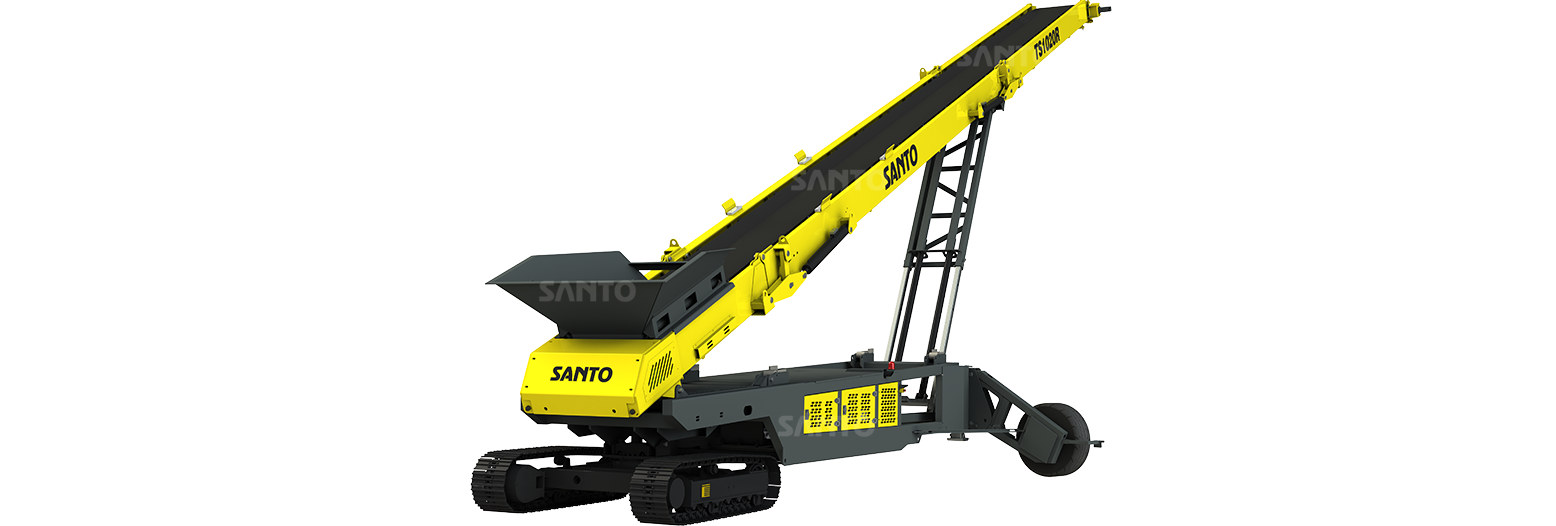

Tracked radial stacker has strong material storage management capability. Its stacking horizontal section is in the form of a ladder fan, which can effectively improve the material storage capacity of the material yard. Essentially, the tracked radial stacker has packaged all the advantages of a mobile radial stacker and that of a tracked stacker into one product, which is generally used after mobile crushing and screening plant. The conveyor length ranges from 20m to 30m, the stacker stacking capacity is up to 1000t/h.
Swinging radial axle complete with hydraulic wheel drives, optional fully automatic stockpiling system.

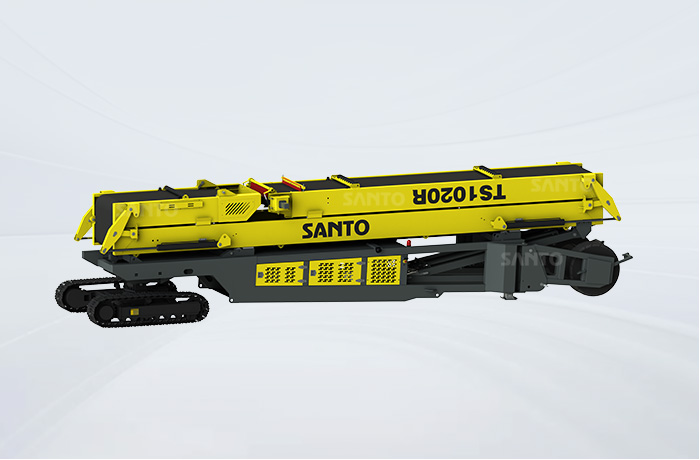

Transports easily via low loader or packed in container for shipping with minimal reassembly required.
Superior slewing performance, 360° slewing allows large-scale material storage.
Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer.
The height of the tracked radial stacker conveyor can be adjusted to match the height of the stockpile to be stacked by hydraulic system.
Swinging radial axle complete with hydraulic wheel drives, optional fully automatic stockpiling system.
Transports easily via low loader or packed in container for shipping with minimal reassembly required.
Superior slewing performance, 360° slewing allows large-scale material storage..
Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer.
The height of the tracked radial stacker conveyor can be adjusted to match the height of the stockpile to be stacked by hydraulic system.
Dramatically increase crusher / screener plant productivity and efficiency.
Eliminate double handling of material with wheel loader.
Our tracked radial stockpile is currently mainly used in mines, quarries, ports, docks, construction sand and gravel aggregate yards, storage yards, etc.
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Stockpile Volume(m3) | Capacity (T/H) | Weight(T) |
| TS820R | 800(31.5inch) | 20 (65ft) | 9.4 (30.8ft) | 1405.8 | 300 | 15 |
| TS824R | 800(31.5inch) | 24 (80ft) | 10.7(35.1ft) | 2086.2 | 300 | 16 |
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Stockpile Volume(m3) | Capacity (T/H) | Weight(T) |
| TS1020R | 1000(39.3inch) | 20 (65ft) | 9.4 (30.8ft) | 1405.8 | 500 | 16 |
| TS1024R | 1000(39.3inch) | 24 (80ft) | 10.7(35.1ft) | 2086.2 | 500 | 17 |
| Model | Belt Width (mm) | Length (m) | Discharging Height (m) | Stockpile Volume(m3) | Capacity (T/H) | Weight(T) |
| TS1220R | 1200(47.2inch) | 20 (65ft) | 9.4 (30.8ft) | 1405.8 | 700 | 18 |
| TS1224R | 1200(47.23inch) | 24 (80ft) | 10.7(35.1ft) | 2086.2 | 700 | 19 |
