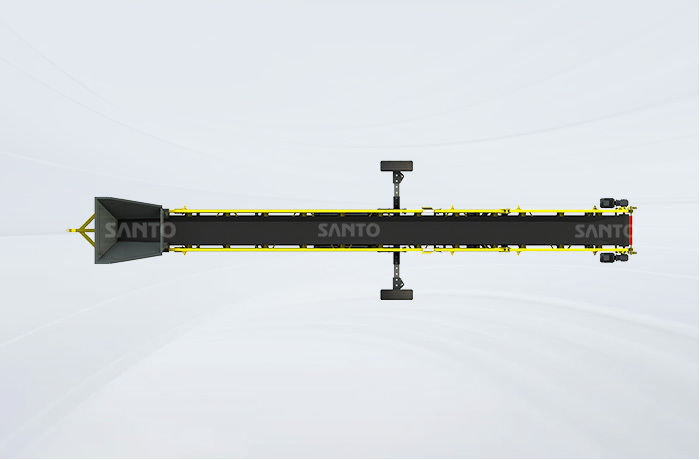

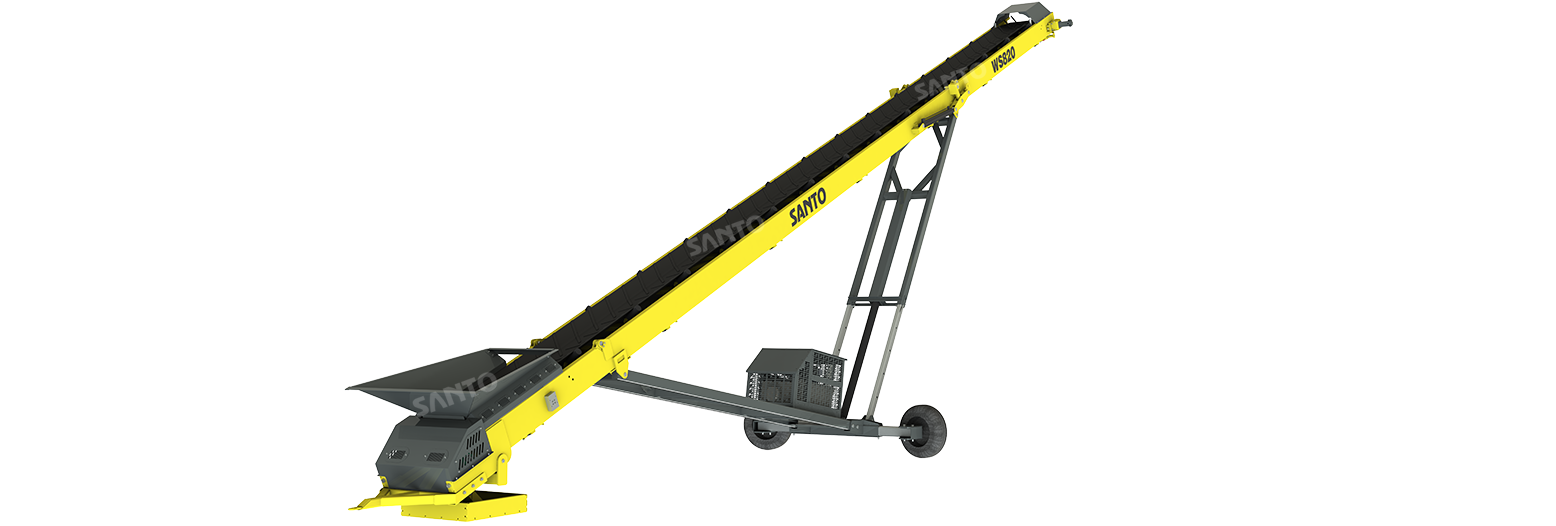

The wheeled radial mobile conveyors break through the design style of traditional fixed conveyors and adopts a large-section curved beam design, which makes the structure more solid and durable. A variety of drive options are available; the simple and economical mobile concept will bring you continuous profits.
The heavy steel structure design, firm structure, applicable to the harsh environment of the mine field and port operation.
Removable counterweight bracket, the user can choose local site material as the counterweight, easy to move.

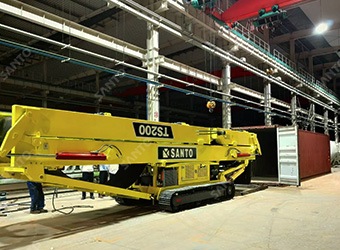

Hydraulic folding allows easily containerized allowing for global transportation.
The wheels used for site movement are repositioned to perform the radial function, can turn 360°.
Optional power sources -diesel, direct electric, hybrial power (diesel/electric).
The heavy steel structure design, firm structure, applicable to the harsh environment of the mine field and port operation.
Removable counterweight bracket, the user can choose local site material as the counterweight, easy to move.
Hydraulic folding allows easily containerized allowing for global transportation.
The wheels used for site movement are repositioned to perform the radial function, can turn 360°.
Optional power sources -diesel, direct electric, hybrial power (diesel/electric).
Eliminates the need for wheel loaders to build stockpiles, reducing labor and maintenance costs.
Short on-site assembly time, friendly user control interface.

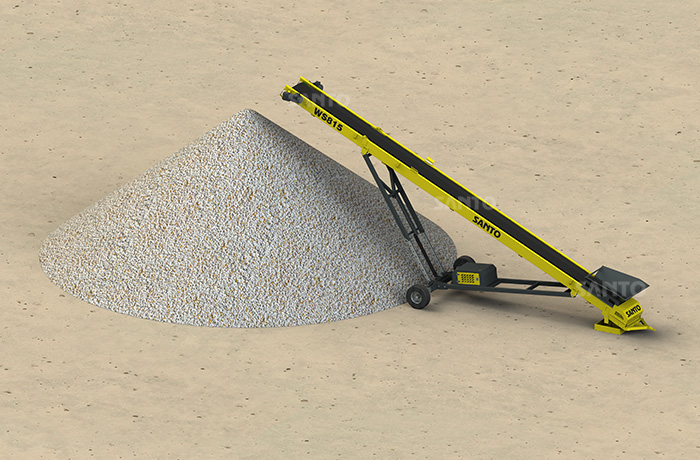

Radial mobile stockpiler is a kind of equipment widely used in engineering, which is mainly used in situations where the loading and unloading locations are often changed, such as ports, docks, stations, coal yards, warehouses, construction sites, sand and gravel yards, farms, etc.
| Model | Belt Width (mm) | Length (m) |
Discharging Height (m) | Stockpile Volume (m3) | Capacity (T/H) | Weight(T) |
| WS809 | 800(31.5inch) | 9 (30ft) | 4.3 (14.1ft) | 118.9 | 300 | 3.2 |
| WS812 | 800(31.5inch) | 12 (40ft) | 5.5 (18ft) | 263.8 | 300 | 4.1 |

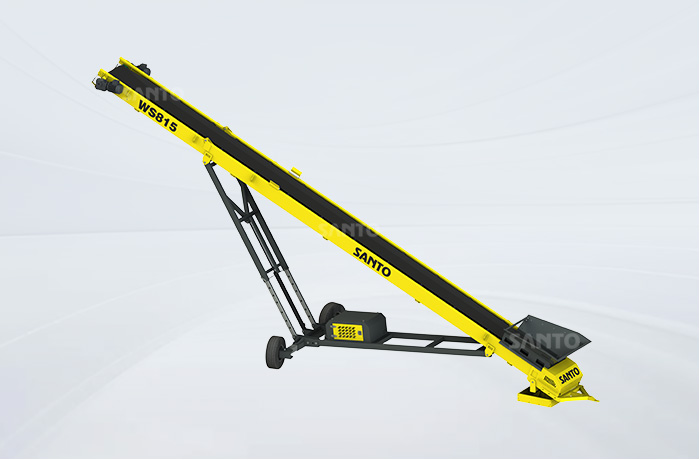

| WS815 | 800(31.5inch) | 15 (50ft) | 6.6(21.6ft) | 472.2 | 300 | 4.9 |

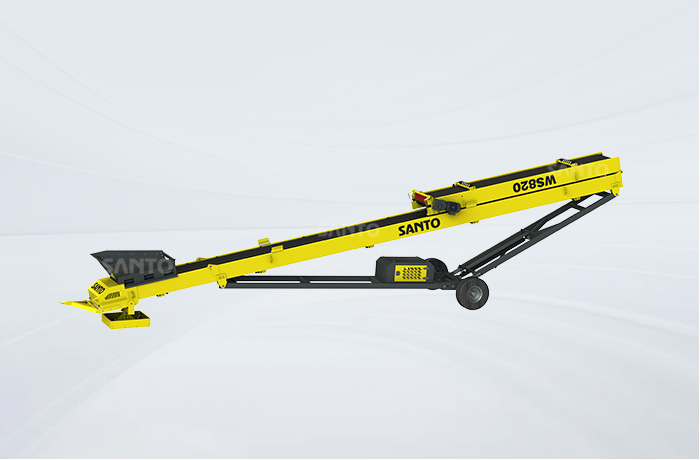

| WS820 | 800(31.5inch) | 20 (65ft) | 8.7 (28.5ft) | 1093.0 | 300 | 5.6 |
| WS824 | 800(31.5inch) | 24 (80ft) | 10(32.8ft) | 1688.3 | 300 | 7.0 |
| WS830 | 800(31.5inch) | 30 (100ft) | 12.8 (41.9ft) | 3654.0 | 300 | 10.0 |
| Model | Belt Width (mm) | Length (m) |
Discharging Height (m) | Stockpile Volume (m3) | Capacity (T/H) | Weight(T) |
| WS1009 | 1000(39.3 inch) | 9 (30ft) | 4.3 (14.1ft) | 118.9 | 500 | 3.7 |
| WS1012 | 1000(39.3 inch) | 12 (40ft) | 5.5 (18ft) | 263.8 | 500 | 4.6 |
| WS1015 | 1000(39.3 inch) | 15 (50ft) | 6.6(21.6ft) | 472.2 | 500 | 5.4 |
| WS1020 | 1000(39.3 inch) | 20(65ft) | 8.7 (28.5ft) | 1093.0 | 500 | 6.1 |
| WS1024 | 1000(39.3 inch) | 24 (80ft) | 10(32.8ft) | 1688.3 | 500 | 7.5 |
| WS1030 | 1000(39.3 inch) | 30(100ft) | 12.8 (41.9ft) | 3654.0 | 500 | 11.5 |
| Model | Belt Width (mm) | Length (m) |
Discharging Height (m) | Stockpile Volume (m3) | Capacity (T/H) | Weight(T) |
| WS1209 | 1200(47.2 inch) | 9 (30ft) | 4.3 (14.1ft) | 118.9 | 700 | 4.7 |
| WS1212 | 1200(47.2 inch) | 12 (40ft) | 5.5 (18ft) | 263.8 | 700 | 5.6 |
| WS1215 | 1200(47.2 inch) | 15 (50ft) | 6.6(21.6ft) | 472.2 | 700 | 6.4 |
| WS1220 | 1200(47.2 inch) | 20 (65ft) | 8.7 (28.5ft) | 1093.0 | 700 | 7.1 |
| WS1224 | 1200(47.2 inch) | 24 (80ft) | 10(32.8ft) | 1688.3 | 700 | 8.5 |
| WS1230 | 1200(47.2 inch) | 30(100ft) | 12.8 (41.9ft) | 3654.0 | 700 | 13 |
